Fetal Doppler with 2 MHz probe Spengler135 x 92 x 29 mm - Weight: 245 g - Warranty: 1 year

Voir la description complète.
Special Price £235.94 incl. VAT Regular Price £258.71 incl. VAT

Save £19.63 ( 9 % )

Availability :

Unavailable

LivraisonGratuite

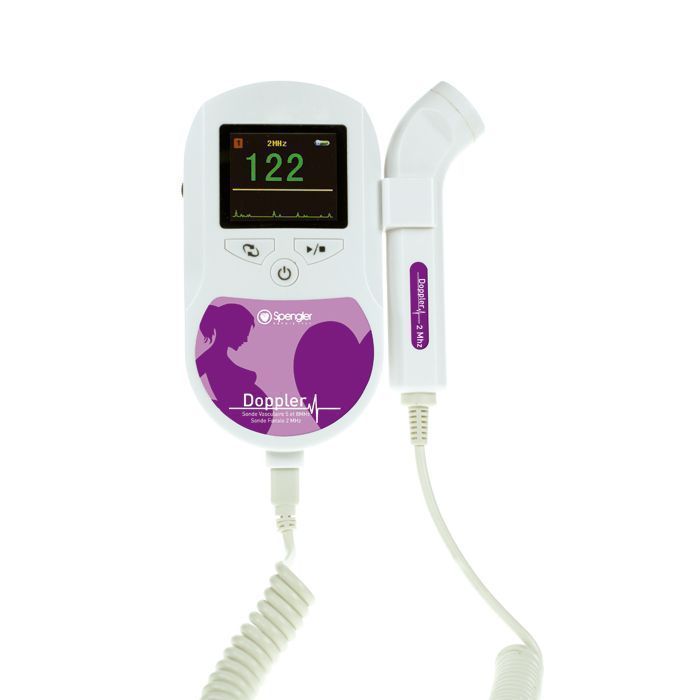

Description Fetal Doppler with 2 MHz probe Spengler


WIDE SCREEN LCD COLOUR:
Fetal Doppler with 2 MHz probe Spengler high resolution display for easy reading


WORK MODE:
Average fetal heart rate in real time, the fetal heart rate, manual

NOMINAL FREQUENCY PROBE:
- 2, 5 or 8 MHz

GAUGE BATTERY:
- 4 levels of battery charge, to better identify

POWER WAVE PULSE:
- To estimate the signal strength and optimum positioning of the probe
- Curve Heart Rate
- Power on / off
- Button mode selection work

- Start button Doppler

PROBE:
- 2 MHz (fetal), 5 or 8 MHz (vascular optional)

BATTERY COMPARTMENT:
- Requires 2 AA batteries LR6
- Speaker
- Headphone jack:
- 3.5mm jack


Technical characteristics of Fetal Doppler with 2 MHz probe Spengler:


DISPLAY:
- Display: color LCD LCD
- Dimensions: 45 x 25 mm
- Resolution: 160 x 128 pixels
- Graphics data: pulse wave signal strength (bar graph), battery charge indicator
- Digital data: heart rate,nominal frequency of the probe operating mode

ELEMENTS OF ORDER:
- Buttons: Power on / off, mode (FHR in real time, average or manual), on / off, volume control
- Jack: headphones (3.5mm)

Heart Rate:
- Range of measurement: 50 240 bpm (beats per minute)
- Accuracy: / - 2 bpm
- Resolution: 1 bpm

FREQUENCY OF WORK:
- Fetal 2 MHz (+ / - 10%)
- Vascular: 5 or 8 MHz (/ -10%)

CURRENT OUTPUT
- Foetal: Isata <5 mW / cm
- Vascular Isata <10 mW / cm

ENERGY:
- Source; 2 x 1.5 V LR6 batteries (included)
- Power consumption: <0.8 W
- Extinction: Manually or automatically after 1 min without signal

PROTECTION:
- Electric shock: Type B
- Splash: IPX4

DIMENSIONS AND WEIGHT
- Dimensions (LxWxH): 135 x 92 x 29 mm
- Weight: 245 g

TEMPERATURE:
- Operating: 5 40 C (HR ≤ 80%)
- Storage: -10 55 C (HR ≤ 93%)

ATMOSPHERIC PRESSURE
- 70 kPa 106 kPa (operation)
- 50 kPa 106 kPa (storage)

Conformity: European Directive 93/42 EEC - 2007/47/EC concerning medical devices
Warranty: 1 year
Reference: 743300


Package Contents fetal doppler with a probe 2 MHz Spengler:


- Doppler 1fetal probe with 2 MHz


Quality Fetal Doppler with 2 MHz probe Spengler:


Fetal Doppler probe with 2 MHz Spengler Spengler is distributed by a portable device for Doppler and fetal blood vessels. It can be used in hospitals, private practice or home-controlling. Doppler distributed by Spengler measures and displays fetal heart rate and pulse wave.
It can also be used with two probes for vascular examination (5 or 8 MHz) option. Doppler distributed by Spengler is exclusively for medical diagnosis and should be used as directed.

More Information
Reference ARRET-743 300
Weight 0.430000
Manufacturer Spengler
