Cardiovit AT-102 Schiller - 12 simultaneous standard leads - 3-Channel ECG high-resolution LCD 120 x 90 mm display area - 3 year warranty
Voir la description complète.
Availability : in 2 day(s)

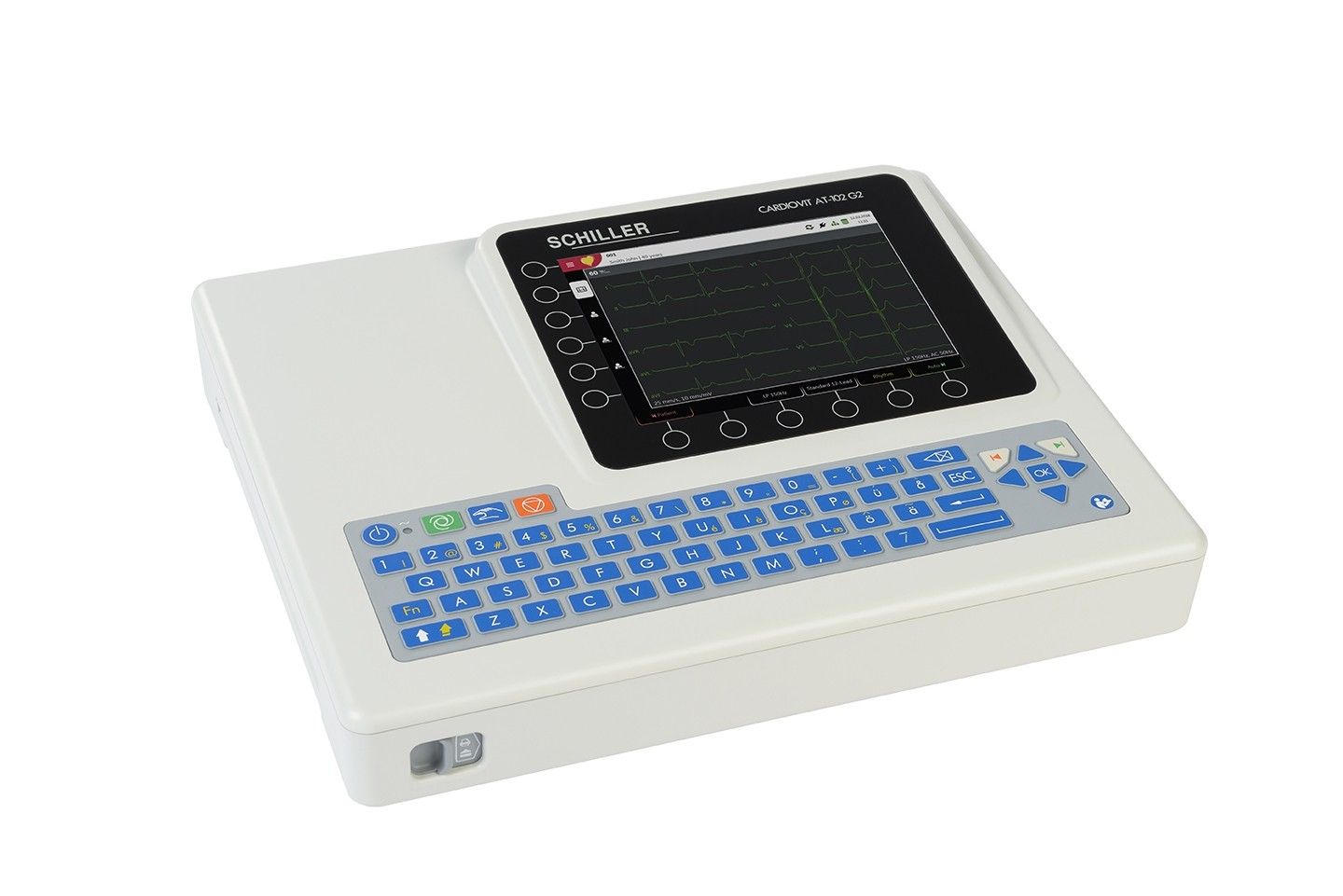

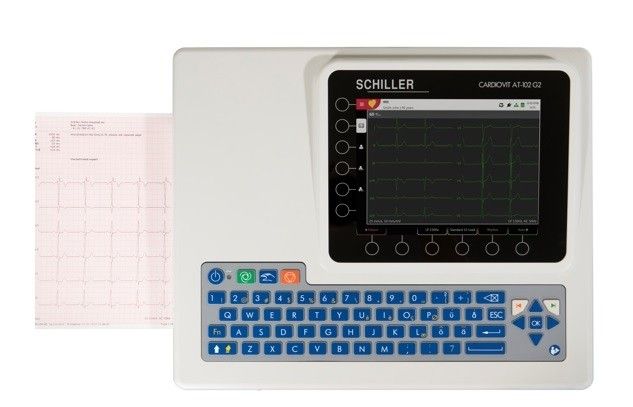

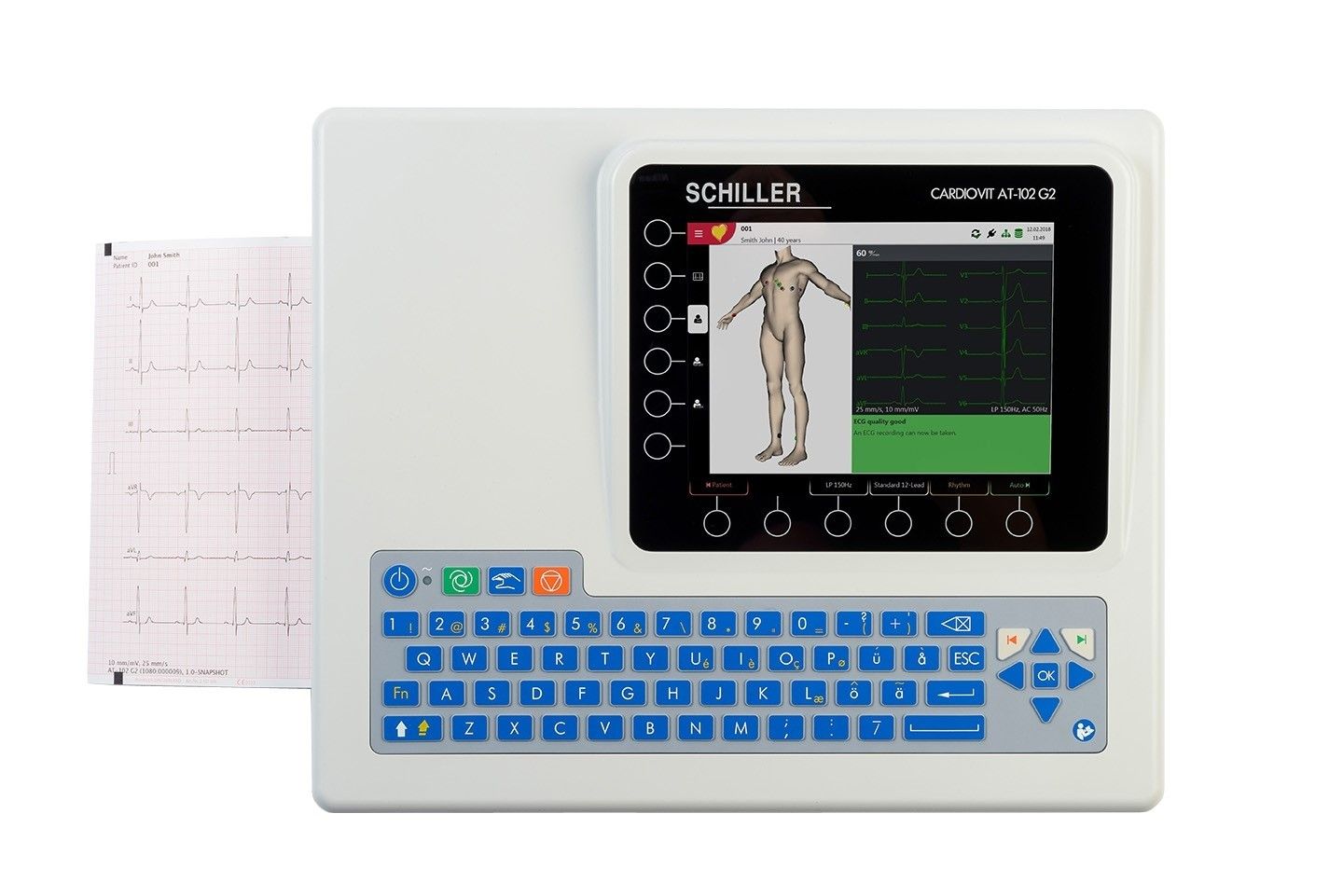

Cardiovit AT-102 Schiller, description:

AT-102 ECG with Interpretation and Memory (for Resting ECG), Full-page 8.5 in x 11in printout with built-in ECG waveform display and VGA Output port.  Upgradeable to PFT and Stress.


The CARDIOVIT AT-102 is an expandable resting ECG system which is particularly suitable for routine use in the practice, clinic or in emergency medicine due to its intuitive and easy operation with direct function keys.

By means of optional software, the system can very easily be upgraded to an ergometry or spirometry measuring station. Moreover, the CARDIOVIT AT-102 can be integrated in a hospital information system (HIS) from which work lists for planned ECG recordings can be downloaded to the CARDIOVIT AT-102. Mobile operation is ensured by the integrated accumulator anytime and anywhere


The integrated high resolution A4 real time printer guarantees long-term storing of ECG recordings in archive

quality; thanks to the automatic paper feed, printing is now even easier.Fiddling with thermal paper is a thing of the past


On the CARDIOVIT AT-102›s brilliant graphic display, all 12 ECG leads can be displayed in freely selectable sequences of 3, 6 or 12. Furthermore, an external LCD screen can be connected to the CARDIOVIT AT-102 (optional)



  • 10 leadwire/12 lead simultaneous acquisition with programmable lead configuration
  • Fully automatic
  • Microprocessor controlled
  • 6-Channel Resting ECG
  • 115VAC and battery operated
  • Built-in LCD
  • Built-in RS-232 interface for data transfer to SEMA 200 (with Serial cable)
  • Printout on standard paper external printer (if printer is connected)
  • Printout on internal thermal printer for real-time manual mode
  • Bi-Directional Communications Options, including: LAN, Wireless (Wi-Fi), and/or Modem

3 Year Limited Warranty


  • Includes:
  • SCHILLER Resting ECG software with 12 simultaneous leads
  • SCHILLER ECG measurement software M, incl. average complexes and measurement markers and detailed measurement results table
  • SCHILLER ECG interpretation software C, incl. adult/pediatric algorithm
  • Memory option for approximately 40 ECG/Spirometry recordings*
  • 12 simultaneous standard leads
  • Pace maker detection
  • High-resolution thermal printer
  • 3-Channel ECG high-resolution LCD 120 x 90 mm display area
  • Alphanumeric keyboard with rubber keys
  • Battery lasts for up to 300 recordings
  • Printout on 8½” x 11” chart paper
  • 6/12-Channel printout formats
  • Operating manual
  • Filter: Myogram filter (muscle tremor filter): 25 Hz or 35 Hz, can be switched on/off (SCHILLER Power line Filter SPF, SCHILLER Baseline Stabilizer SBS , SCHILLER Smoothing Filter SSF)
  • Requirements for Data Output to EMR systems (using SEMA):
  • Memory Option (5.080003)
  • SEMA Light (9.610100), SEMA Light w/PDF Output (9.610100P) or SEMA Standard w/PDF Output (5.610000)
  • via Serial Port (Requires Serial Cable, Part No. 2.310094)
  • via WLAN, Wireless LAN and/or Modem (Requires SCM Module, Part No. 5.070007, 5.070010 or 5.070009)
More Information
Reference 0A.108000
Weight 4.900000
Country of Production Switzerland
Manufacturer Schiller
Number of leads 3
Touch screen No
