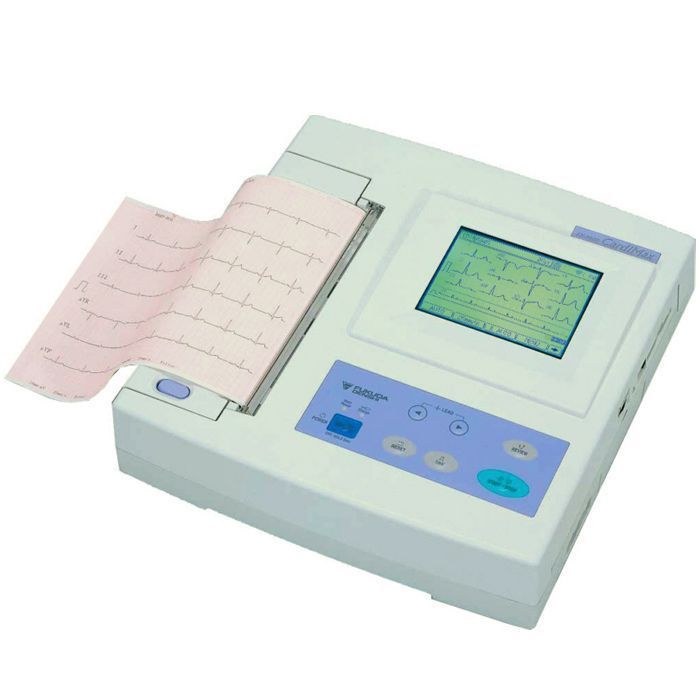

Electrocardiograph CardiMax Fukuda Denshi FX-7402

Electrocardiograph CardiMax Fukuda Denshi FX-7402 description

- 12-lead Electrocardiograph
- A4 size recording format
- Clear ECG display
- Touch Screen for easy operation
- Alpha-numeric Keyboard
- Interpretation program ( option )
- Two way power supply AC and rechargeable battery ( option )
- PCMCIA card for data filing and Software upgrade
- Interface for data transmission


The FX-7402 comes standard with the function to provide ECG examination reports in an A4 size report. The LCD touch screen ensures ease of use and observation of information without troublesome operaation. High functionality amd efficient operability are brought together in this simple design.

Electrocardiograph CardiMax Fukuda Denshi FX-7402 Touch screen

Touch screen for easy operation
The touch screen allows the FX-7402 to have a simplified apperarance with a reduced number of fixed keys on the operation panel.
To start, the display only shows the information and keys required for the ECG examination.
Thus, you can simply select the desired key for operation, and quickly proceed with the examiantion.

Easy-to-see Display
The backlit display provides up to 12-lead of real-time ECG waveforms, and error messages. The display assists you to easily identify noisy leads from the real-time ECG waveforms, or locate a possible to avoid useless recordings. This allows you to perform the ECG examination quickly and accurately.
In addition, the touch screen provides a full keyboard for input of information, including the patient name.

Technical details:

Leads : Standard 12 Leads
Sensitivity : 1/4, 1/2, 1, 2 cm/mV ; manual or automatic
Time Constant : 3.2 sec or greater
Frequency response : 0.05 Hz to 150 Hz (within -3dB)
Common mode rejetion ration : 103 dB or greater
Max. electrode potential : +- 550 mV or greater
A/D conversion : 18 bits
Sampling frequency : 8000 samples/sec/channel
Filters : AC 50 or 60 hz, -20dB or less ; Muscle : 25 or 35 Hz, -3dB (-6dB/oct) ; Drift 0.25 or 0.5 Hz, -3dB (-6dB/oct)

ECG storage
Built-in memory : Up to 300 events
PC card : Up to 1000 events (with 2 Mbyres PC card)

Display
Device : Backlight LCD with Touch Screen
Display area : 115 mm (H) x 86 mm (V)
Resolution : 320 x 240 dots
Representation : 3/6/12 channels ECG display

Operation
Device for operation : Touch Screen and membrane keys (The touch screen is used for alpahnumeric keyboard input)

Recorder
Method : Thermal dot array
Paper speed : 10, 12.5, 25 or 50 mm/sec
Recording paper : Roll, 210 mm x 30 m (OP-69TE)

I/O interface
Serial port : RS-232C, 1 port
PC card slot : PCMCIA, 1 slot
External display : SVGA, 800 x 600 pixels

Safety
Regulatory standards : IEC60601-1, IEC60601-2-25
Electrical shock protection : Class I , Type CF and Internally powered equipment type CF
Conformity : CE marking per 93/42/EEC Directive

General :
Poser requirements : 100 to 240V AC Universal, 50/60 Hz
Dimensions : 335 (W) x 346 (D) x 100 (H) mm
Weight : Appro. 6 kg (w/o battery)
