TECHNICAL FEATURES
Channels: 4 independent channels (8 electrodes)
Frequency: 0,3 – 150 Hz
Power: 120 mA/channel
Impulse amplitude: 45 – 450 µs
Wave form: Symmetrical biphasic square pulsed
Conformity: The device complies with the ISO 9001, EN 46001 standards for electro medical devices that are MDD certified (Medical Device Directive).
EQUIPMENT :
1 Bag
1 Electrostimulator unit
4 Cables
2 grey cables for medical currents (MENS and IONOPHORESIS)
1 Battery charger
4 Electrodes mm 50 x 50
4 Electrodes mm 50 x 90
1 IONOPHORESIS electrode
1 user manual

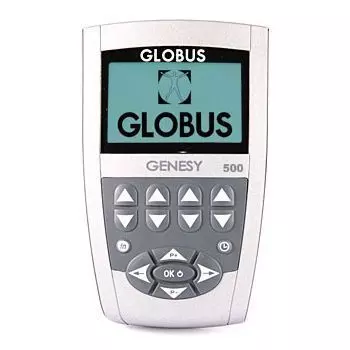

FUNCTIONS OF THE GENESY 500
EASY PROGRAM: makes programming faster
MY TRAINER: displays all the images of electrode positioning directly on the screen
STIM FIT: can modify contraction parameters during stimulation
FAST MENU: makes navigation faster
STIM LOCK: enables the therapist to allow the patient to use prescribed programmes only
WORK TIME: displays effective machine usage times by all users
SPECIAL FUNCTIONS
FUNCTIONAL REHABILITATION: the programs are aimed at correctly carry out the rehabilitation of the injured person by means of specific programs having Rectangular, Russian, Denervated and Interferential waves.
IONOPHORESIS (Galvanic currents): IONOPHORESE is ideal to treat patients with inflammatory conditions.
MICROCURRENTS (MENS): Genesy 500 offers the new and innovative currents “regenerative” and “curative” for Sport, Beauty and above all Health applications.
BACKLIT GRAPHIC DISPLAY
DUAL STIM 2+2: option of performing two different programmes at the same time.
AUTO STIM®: the only stimulator that can perform a programme automatically without manually adjusting the ntensity.
SYNCROSTIM: A single key can be used to increase the intensity of the 4 channels at the same time.
MULTI-useR: enables the stimulator to be shared by a number of users, saving respective settings, preferences and programmes.
MEMO FUNCTION: can create a library of personalised programmes.
LAST 10: saves the last programmes performed. This way they are available to be selected quickly and easily.
BATTERY OPERATED.
Reference | G1299 |
---|---|
Weight | 0.500000 |
Manufacturer | Globus |
Use | Professional use, Sport |
