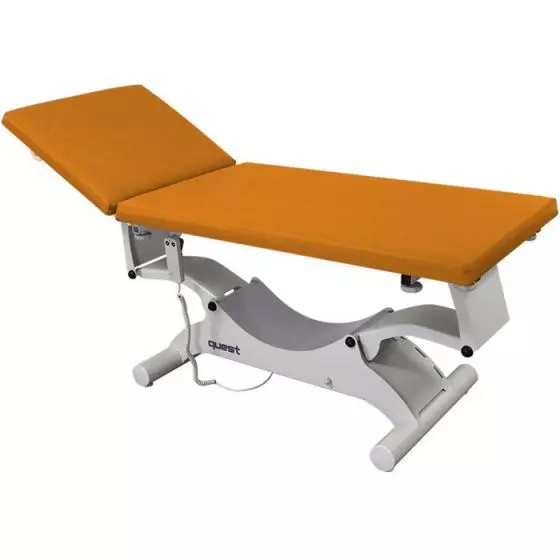

Examination couch Electrical Quest Promotal Upholstery pads

Examination couch Electrical Quest Promotal Upholstery pads, description:

Advantages:

COMFORT :

100 % of the surface usefull

Smooth electrical motions

3 connections possible (possibility

to combine hand and foot control)

ACCESSIBILITY :

Variable height from 46 to 92 cm

Compatible with a hoist

SAFETY :

Very stable H shaped base

200 kg patient weight capacity

Trendelenburg - reverse trendelenburg

(on specific models only)

Sturdy elevations arms

HYGIENE :

Base without carter

Exclusive Block 'n Roll system

(on specific models only)

All exposed parts are cleanable

Technical chracteristics:

Electric variable height from 46 to 92 cm

Steel frame structure with grey epoxy finish

Gas-spring assisted or electric backrest

Hand control

Adjustable levellers under base

Block’n Roll® - Integrated retractable castor system

semi centralized (ref: 2050-15, 2050-30 and 2050-50)

Paper roll holder (max length 50 cm - ø 12,5 cm)

Mobile hoist compatibility clearance of 12 cm

Possibility of 3 control connections

200 kg patient weight capacity

(tested at a dynamic weight of 250 kg and a static weight of 800 kg)

HARNESS:

- Coating
- Foam 27 kg/m3, thickness 20 mm
- Foam Central 30-35 kg/m3
- Outdoor Foam 75 kg/m3, thickness 30 mm

DIMENSIONS:

- Net weight of the couch: 88 kg
- Net weightof upholstery: 21 kg
- Gross Weight of couch: 112 kg
- Gross weight of upholstery: 25 kg
- Volume of the couch: 0.70 m3
- Volume of upholstery: 0.18 m3

CHOICE upholstery colors:

- 16 different colors
- Basic: Blue, Green, Yellow, Red, Orange
- Trendy: Azur Citron, Grape, Lilac, Candy
- Classic: Marine, Cottage, Nutmeg, Neve, Tin
- Black: Obscure

CHOICE OF THE WIDTH OF THE HARNESS:

- Reference 2050-10 600150-65:
- Width: 65 cm

- Reference 2050-10 600150-75:
- Width: 75 cm

OPTIONS:

- Face cutout in head-cushion only with flat upholstery 2230

- Factory assembly fitting of upholstery 600000-01

- Set of 4 double castors with brakes Ø 50 mm (ref 2050-10,2050-20) 81036

WARRANTY: 2 years
