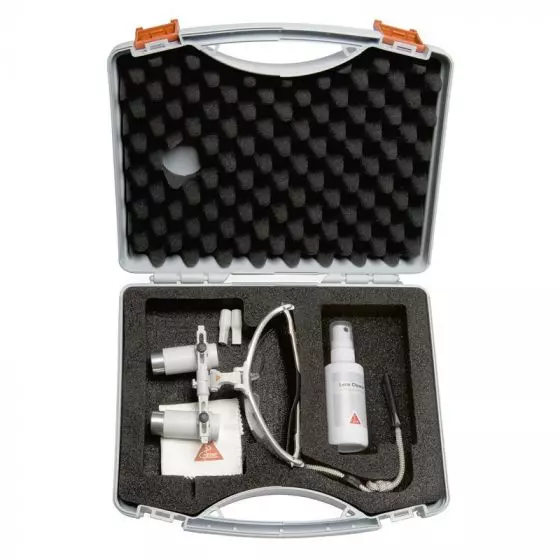

S-Frame with i-View loupe-carrier for S-Frame, detachable protective
lenses, 2 sterilisable swivel levers, retaining cord, cleaning fl uid, carrying case.
|Availability :||Select your option(s)|
Optics, S-Frame with i-View loupe-carrier for S-Frame, detachable protective lenses, 2 sterilisable swivel levers, retaining cord, cleaning fl uid, carrying case. HRP Binocular Loupes of 3.5 x magnifi cation or higher are recommended for fine surgical procedures where high magnifi cation is necessary, for example in endodontal, vascular, neuro, and intricate orthopedic surgery and for experienced users.
HRP loupes have been designed to provide the largest fi eld of view and best depth of field possible for each magnifi cation. Please note that the fi eld of view and depth of field will decrease as magnifi cation increases making higher-magnifi cation loupes more difficult to get accustomed to. Prismatic Optics. Only top-quality, precision glass prisms are used to provide the highest resolution and clearest, crispest images over the entire fi eld of view “edge-to-edge”. The Brightest Image in Perfect Colour. Our exclusive coating technology reduces light reflection to 0.3 % allowing for optimum light transmission, and ensuring perfect colour reproduction for brilliant, 3-dimensional images.
Compact Design. Although the higher magnifi cation requires a more complex design, the weight of the HRP loupes has been minimized. The 3.5 x and 4 x optics weigh only 78 g, the 6x weighs only 89 g. The headband mounting option is an ideal way to eliminate any weight concerns for those users not accustomed to wearing any type of
glasses or spectacles.
Dust- and Water-Resistant. All HRP loupes are dust- and water-resistant to IP65 / IEC 60529 (2000) to ensure ease of cleaning/disinfection, and years of trouble-free use. Flexibility for Precise Adjustment. HRP loupes have independently-adjustable optics for selecting the exact inter-pupillary distance (PD). HRP loupes can be adjusted precisely for each user for optimum optical performance by means of a range of different mounting positions on either frame or headband. Field of View at High Magnifi cation. Advanced optical design ensures a wide fi eld of view and a great depth of fi eld even at high magnifi cation, avoiding eye strain over extended periods of use.
3.5 x Magnifi cation: 3.5 x magnifi cation makes the HRP 3.5 x loupes ideal for intricate surgical procedures, while still giving an excellent fi eld of view and good depth of focus. The 420 mm working distance is best suited for applications where the user is standing up. 4.0 x Magnifi cation: 4.0 x loupes provide magnifi cation for most advanced micro-surgical and dental applications yet still offer a large 50 mm fi eld of view. The 340 mm working distance is ideal for applications where the user is in a sitting position. 6.0 x Magnifi cation: Here the focus is on maximum magnifi cation, with a 40 mm fi eld of view. The 340 mm working distance is ideal for applications where the user is in a stable, sitting position.The HEINE S-Frame is a truly exceptional spectacle frame: Virtually all of its parameters can be customized – making it the perfect fit for any head or face shape. It is ultra-light, pleasant to wear and can be combined with all new HR, HRP and HR-C Maximum comfort thanks to a modern, ergonomic design. Attractive spectacles that fi t any shape of head or face perfectly for maximum wearer comfort. No pressure points, pinching or slipping of the frame Customizable.
Moldable in all directions, the adjustable temples made from KYNETIUM come with an anti-slip surface. Flexible adjustable nose pads with silicone overlay for maximum comfort and superlative stability. The nose pad is made from skin-friendly silicone and fits all nose and face shapes. It also prevents the spectacles from slipping. Low weight (24 g). Thanks to the use of high-tech materials.
State-of-the-art technologies and innovative materials. The carbon frame, S-Frame temples made from aluminium alloy (KYNETIUM) and magnesium result in a light weight while silicone ensures superb elasticity and titanium gives greater resilience. Durable polycarbonate safety glass. The protective lenses offer superlative splash protection, even when combined with a headband. The interchangeable lenses are available in two different sizes. They are scratch-resistant and provide excellent visual sharpness. Small protective lenses are also available. Allows the use of prescription lenses. Optional correction frames are also available for prescription lenses. Simple “ClipOn” attachment. Flip-up control for optics. The optics can be easily flipped up and down into the visual axis. The binocular Loupe mount is compatible with all HR 2.5 x / HRP and HR-C Binocular Loupes. Extensive accessories. Lenses, cleaning fluid, nose pads, spare parts kit.
|Country of Production||Germany|
